Veterinary Digital Radiography Solutions

Talk to an Expert

FEATURES

  • Small footprint and easy installation
  • Personalized to Your Clinic Needs
  • Intelligent Exposure Assistant
  • Animal-Based Protocols
  • Simple to Use

Veterinary

DynaRad introduces a fixed digital radiology system with DynaVet Systems for your companion, small animal practice that combines simplicity, personalization, and enhanced diagnostic imaging processing.

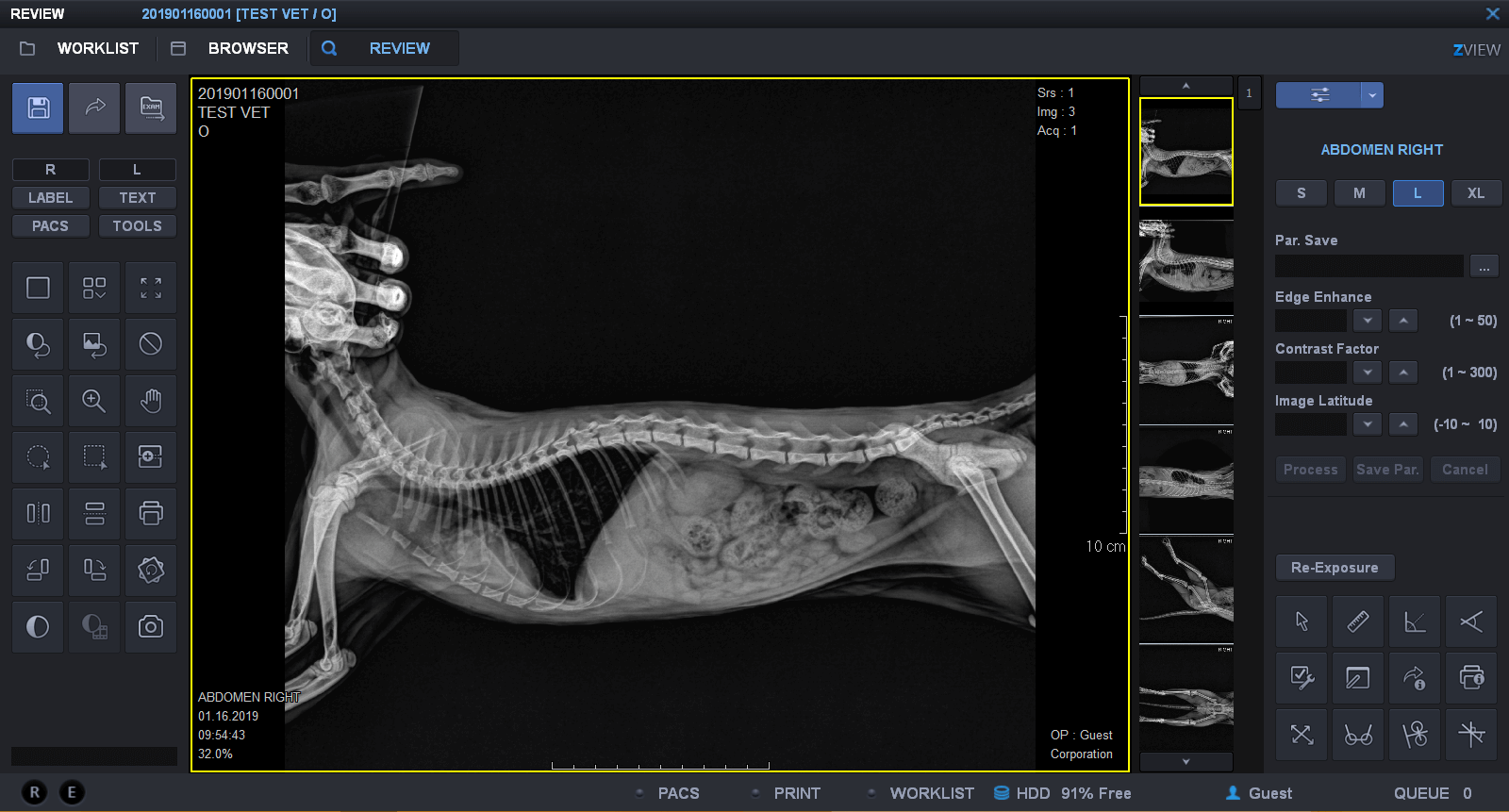

Vet DR Software

EASY WORKFLOW

Registration helper, Pre-defined protocols, animal-based view selection, worklist and archive study management, two-study comparison, auto query from RIS, auto protocol assist, MPPS

ENHANCED IMAGE PROCESSING

Integrated contrast enhancement, dynamic range control, detail enhancement, noise reduction, zoom, window/level, ROI, selection, invert, rotate, flip, annotation, instant imaging, accept/reject images

INTELLIGENT EXPOSURE ASSISTANT

Add, delete or copy views easily, graphical patient positioning guide with example images, built-in APR settings based on patient size, exposure index, thumbnail images for acquired image

DICOM CONNECTIVITY

5 concurrent licenses mini-PACS, DICOM print and Windows Print, export images as JPEG/BMP/TIF, export images to USB/CD/DVD media

Specifications

SYSTEM

  • X-Ray Tube: 140KHU
  • 1.0-2.0 Focal Spot
  • 125kV Manual LED Collimator with Laser Light
  • Fixed SID 4-Way Float Top Table
  • 40” Fixed SID
  • Table Height: 29.9” (76 cm)
  • Tabletop Dimensions: 59.0” x 29.1” (150×74 cm)
  • Acquisition PC at Head of x-ray tube (option)

GENERATOR

  • High Frequency 32kW Single-Phase 208/204V
  • kV Range: 40-125
  • mA Range: 10-400
  • Exposure Time Range: .001-10 seconds*
  • Automatic Calibration
  • Service Diagnostics
  • Integrated Console with DR Acquisition

DIGITAL DETECTOR

  • Fixed or Portable
  • Wireless or Tethered
  • Gadolinium or Cesium
  • 14”x17” / 17”x17” / 10”x12”
